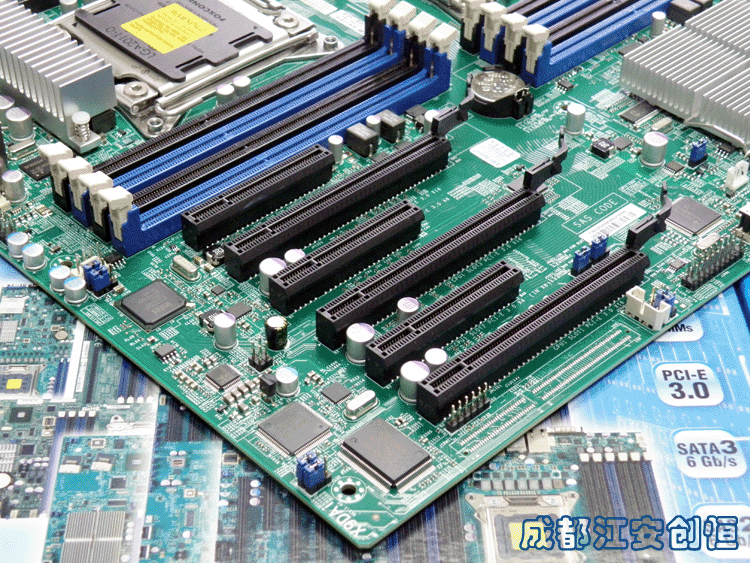

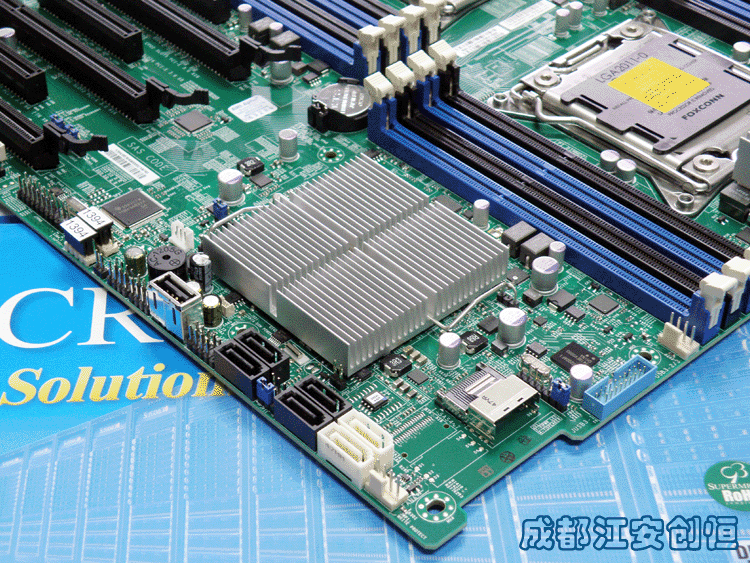

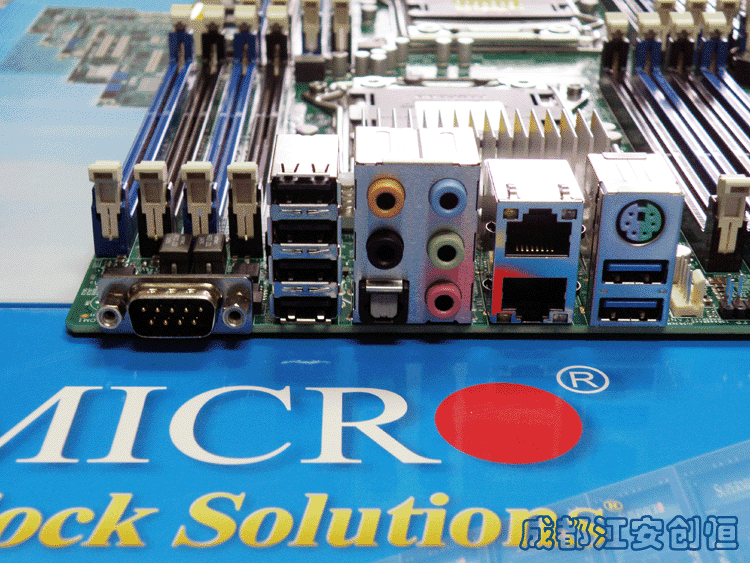

    超微 X9DAi

    超微 X9DAi 官方链接:

    http://www.supermicro.com.tw/products/motherboard/Xeon/C600/X9DAi.cfm












    Key Features

    1. Dual socket R (LGA 2011) supports
        Intel® Xeon® processor E5-2600
        and E5-2600 v2 family

    2. Intel® C602 chipset; QPI up to 8.0GT/s

    3. Up to 1TB ECC DDR3, up to 1866MHz;
        16x DIMM slots

    4. Expansion slots: 3x PCI-E 3.0 x16, 2x
        PCI-E 3.0 x8 & 1x PCI-E 3.0 x4 (in x8)

    5. Intel® i350 Dual port GbE LAN

    6. 8x SATA2 and 2x SATA3 ports

    7. 4x USB 3.0 and 7x USB 2.0 ports
