超微 X10SAE 官方链接：

http://www.supermicro.com.tw/products/motherboard/Xeon/C220/X10SAE.cfm

Key Features

1. Single socket H3 (LGA 1150) supports
Intel® Xeon® E3-1200 v3/v4, 4th/5th
gen. Core i7/i5/i3 processors

2. Intel® C226 Express PCH

3. Up to 32GB DDR3 ECC/non-ECC
1600MHz UDIMM in 4 sockets

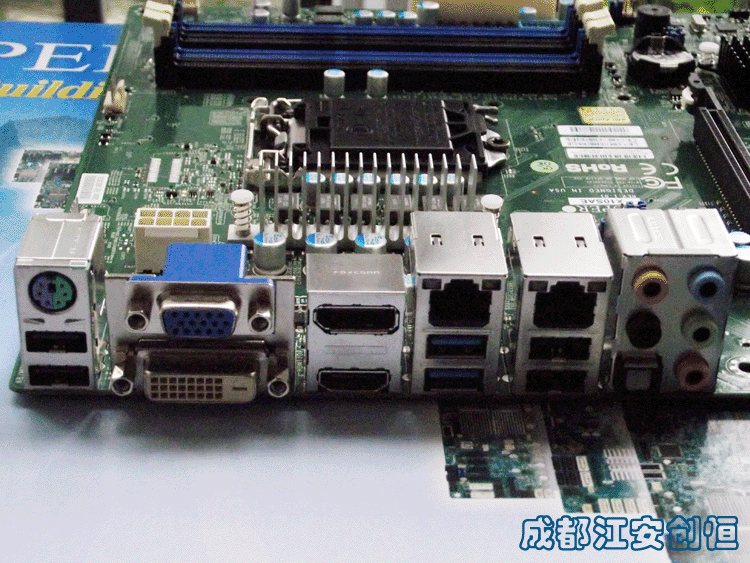

4. Dual Gigabit Ethernet LAN ports
(1x Intel® i217LM & 1x Intel® i210AT)

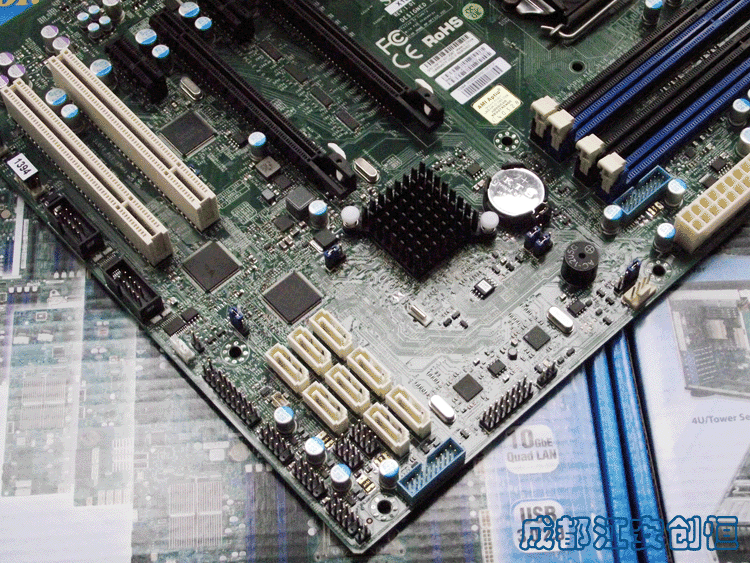

5. 8x SATA3 (6Gbps)

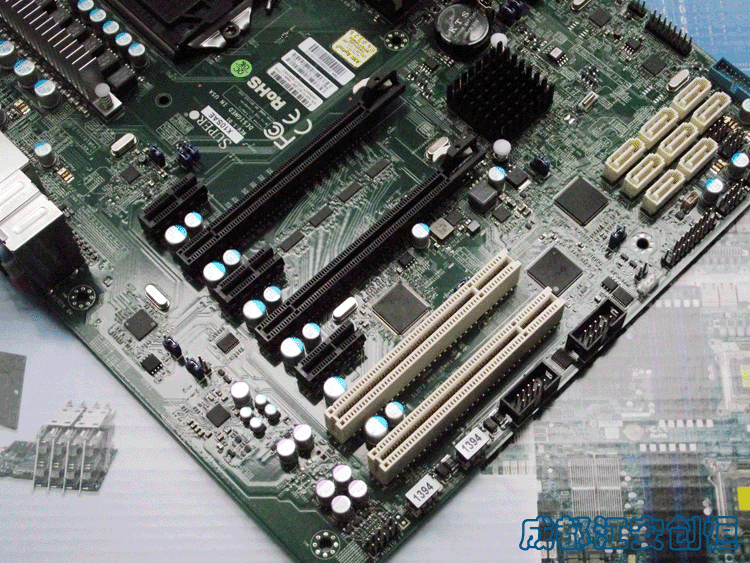

6. 2x PCI-E 3.0 x16 slots - function
as 16/NA or 8/8, 3x PCI-E 2.0 x1,
and 2x PCI 5V 32-bit slots

7. 6x USB 3.0 (2 rear + 4 via headers)
10x USB 2.0 (4 rear + 6 via headers)

8. HD Audio 7.1 channel connector by
Realtek ALC1150

9. 1x DOM power connector and
1x SPDIF Out Header

10. UEFI BIOS support
