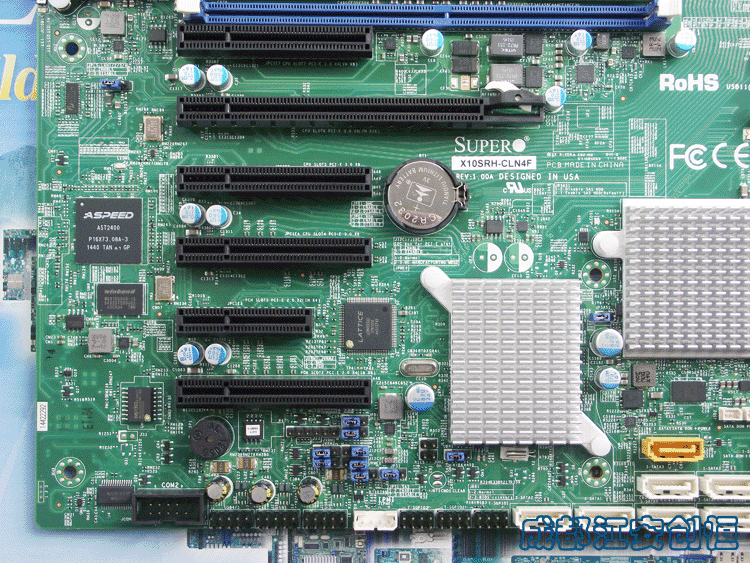

    超微 X10SRH-CLN4F

    超微 X10SRH-CLN4F 官方链接:

    http://www.supermicro.com.tw/products/motherboard/Xeon/C600/X10SRH-CLN4F.cfm















    Key Features

    1. Single socket R3 (LGA 2011) supports
        Intel® Xeon® processor E5-2600
        v3 and E5-1600 v3 family

    2. Intel® C612 chipset

    3. Up to 512GB ECC DDR4 2133MHz
        LRDIMM; 8x DIMM slots

    4. 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8
        (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0
        x2 (in x4), 1 PCI-E 2.0 x4 (in x8)

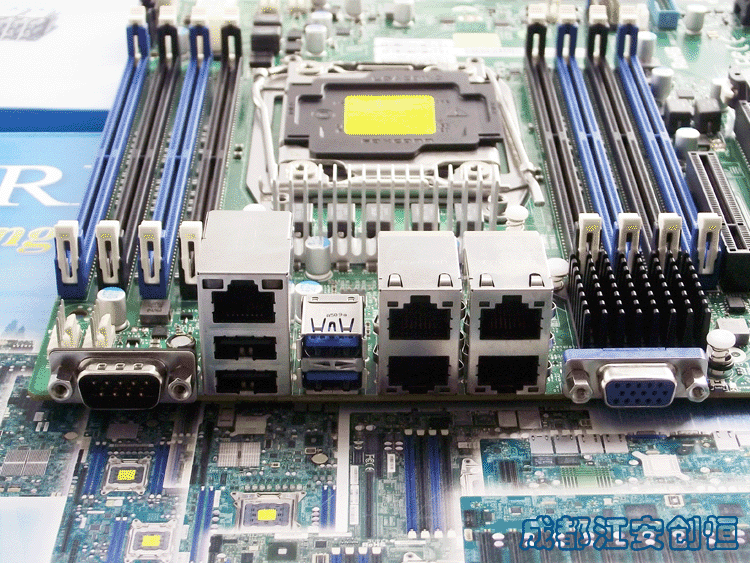

    5. Intel® i350-AM4 Quad port GbE LAN

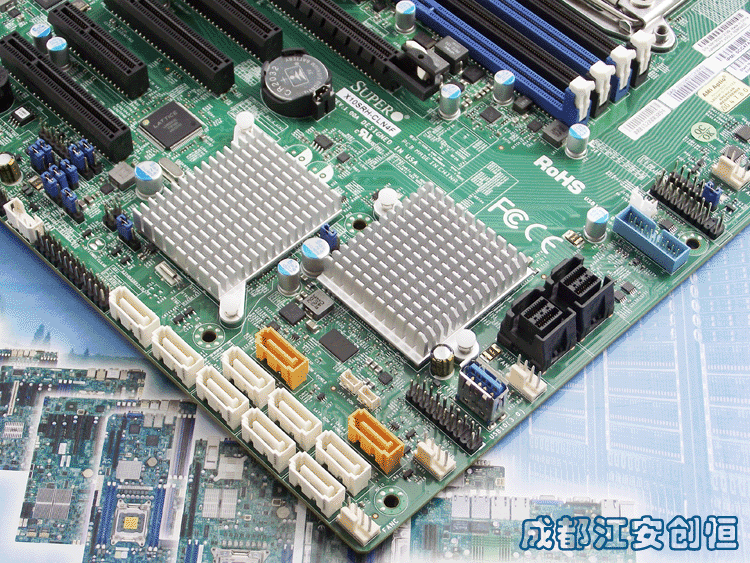

    6. 10x SATA3 (6Gbps) via C612

    7. 8x SAS3 (12Gbps) via LSI 3008 SW
        controller; RAID 0, 1, 10

    7. 1x VGA, 2x COM, 1x TPM

    8. 4x USB 3.0 ports, 8x USB 2.0 ports

    9. 2x SuperDOM with built-in power
