    超微 X10 E5 V3 LGA2011SUPERMICRO X10 E5 V3 LGA2011
    您当前位置:首页 > 配件中心 > 服务器主板 > 超微 X10 E5 V3 LGA2011 >

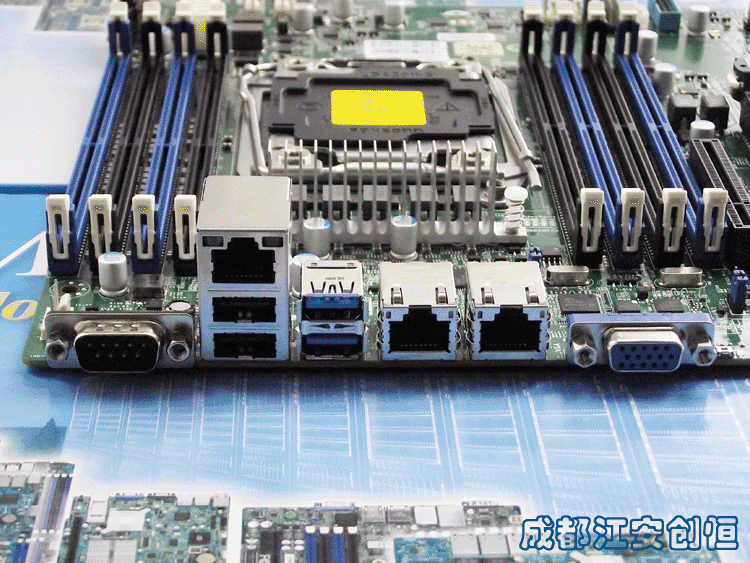

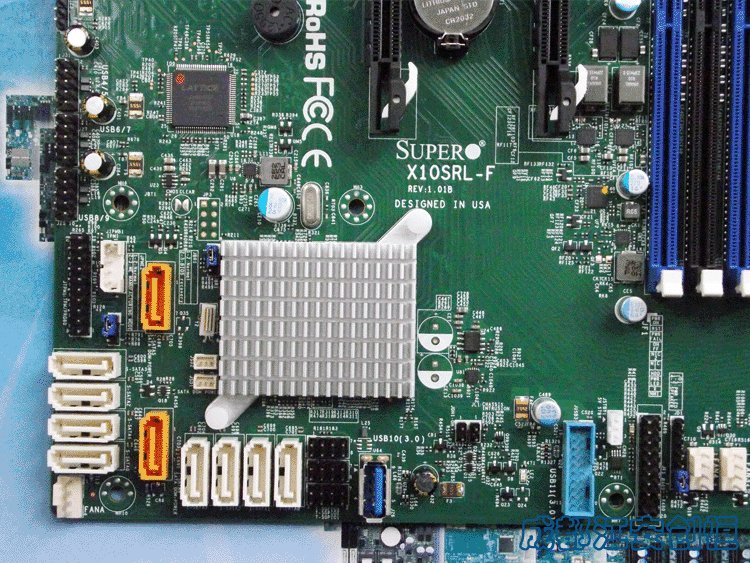

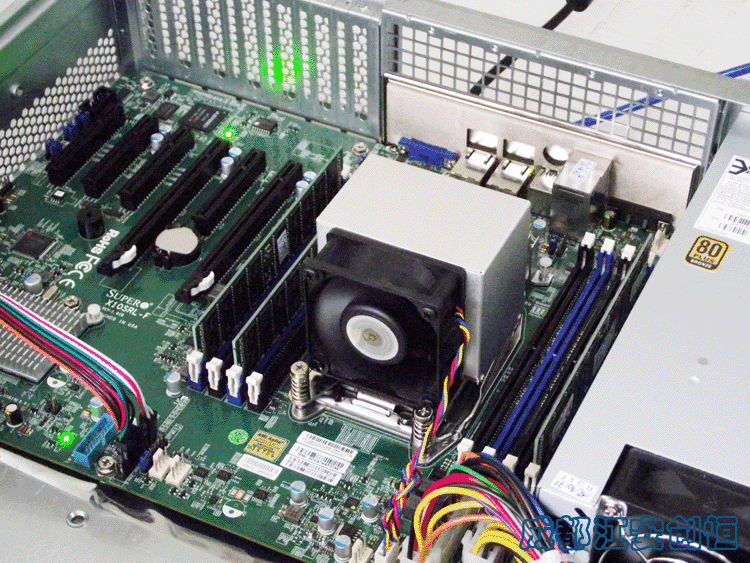

    超微 X10SRL-F

    超微 X10SRL-F 官方链接:

    http://www.supermicro.com.tw/products/motherboard/Xeon/C600/X10SRL-F.cfm










    Key Features

    1. Single socket R3 (LGA 2011) supports
        Intel® Xeon® processor E5-2600 v3
        and E5-1600 v3 family

    2. Intel® C612 chipset

    3. Up to 512GB ECC DDR4 2133MHz
        LRDIMM; 8x DIMM slots

    4. 7x PCI-E slots total:
        2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16),
        2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0
        (auto-switch), & 1 PCI-E 2.0 x4 (in x8)

    5. Intel® i210 Dual port GbE LAN

    6. 10x SATA3 (6Gbps) via C612

    7. 1x VGA, 2x COM, 1x TPM

    8. 4x USB 3.0 ports, 8x USB 2.0 ports

    9. 2x SuperDOM with built-in power
